Zero to Hero Class: Pirate Box Edition.

I’ll be teaching a class on how to setup a Pirate Box at the Generator on March 22nd. Check out more info and sign up here.

Want to carry around a world of important data, like Wikipedia, and health guides?piratebox_1
Need a way to share a bunch of files with some folks?
Come learn how to make a PirateBox a tool for sharing information in a secure offline manner!

PirateBox is a DIY anonymous offline file-sharing and communications system built with free software and inexpensive off-the-shelf hardware. Perfect for public spaces as a means of sharing interesting data and having offline discussions.piratebox12During this quick 4 hour  class students will learn how to build a Pirate Box. This class will guide students through the process of converting a plain TP-Link MR3020 and USB thumb drive into a Pirate Box.

$50 lab fee covers purchase of Pirate Box and all necessary materials (MR3020 & USB Drive).

Emergency Power

10957720_594803736637_7918288386385030315_nA few Lab members recently asked me “how do you survive power outages?”

Here’s how, and it’s all available at your website or department store of choice (cough cough Amazon, Wal-Mart)

One (1) marine deep cycle battery, as large as you can afford
and/or can carry (approx $80) (must buy in store)

One (1) 12 volt trickle charger (approx $30)

One (1) 12 volt to 120 volt inverter, sized according to your needs. 200 watts will power a few devices for around $40; do yourself a favor and get a 600 watt Tripp Lite or similar, around $90

Optional: One or more 12V accessory plugs, to wire into b10988927_594803641827_8314235716196964016_nattery (approx $10/ea)

My current “Power Box”, pictured below, is currently out on an off-grid island staged and waiting to run some Civic Wireless customer premises equipment. The box will run network gear on a small inverter for weeks on a full charge.

Part 2: Exploring solar trickle charging.

Questions? Email: help [at] civicwireless.org
–Chad

Champlain Mini Maker Faire Roundup 2014

The Laboratory B crew had a great time at this year’s two day  Champlain Mini Maker Faire! This year we had additional support from FairPoint Communications to allow us to teach kids & adults how to solder.  We had really impressive students this year, many of whom have seen us before at the previous events.  Many people were coming back for their second or even third time.  Good work everybody and thanks for coming out to see us!  As usual, if you had trouble with your kit or ran out of time please feel free to swing by the Lab, but let us know your coming ([email protected]) Awesome!

Charley helping out as usual!
Charley helping brothers that don’t need much help. Good work guys!

Lab B at Champlain Mini Maker Faire 2014

Laboratory B is all set up and ready to see you at Champlain Mini Maker Faire this weekend!  The event is on Sat. October 4th 10am – 5pm,  and Sun. October 5th 11am-4pm at Shelburne Farms in Shelburne Vermont.

Lab B has been at the Maker Faire since it started 3 years ago, and like last year and the year before, we’ll be teaching kids & adults how to solder! FairPoint Communications made a donation to help provide kits, and we have four kits from SparkFun in the mix this year; Weevil Eye, Big Time Watch, Simon Says & Mr. Roboto.

From our excerpt in the schedule:

“Join the folks at Laboratory B for a self-paced soldering workshop. We bring the soldering irons and the kits, you bring the desire to learn.  We will have kits from SparkFun and all the required supplies and safety gear for you to sit down and learn how to solder, and when you finish you take the kit home!  Have you soldered in the past but are not familiar with some of the newer techniques such as surface-mount soldering?  No problem!  There will be beginner kits, intermediate kits, and advanced level kits to fit all skill levels.”

pre_maker_faire_2014

Aaron’s piHouse Monitor part 2

In March I posted about using my Raspberry Pi to monitor my furnace and the temperature of my apartment.  I moved over the summer and the new apartment does not have the same type of heating that the last apartment did. So I had to make some changes.

The Pi now interfaces with a Rinnai heater, which was slightly more complicated than the furnace thermostat.

Here are some highlights, you can find the whole story here.

The new heater, a Rinnai  Energy Saver-551F
The new heater, a Rinnai Energy Saver-551F
rinnai_block_diagram
The Wiring Diagram and the Block diagram are on the inside of the front cover
Photo of “MICRO COMPUTER PCB” with relays circled
Photo of “MICRO COMPUTER PCB” with relays circled
Assembling the whole thing
Assembling the whole thing

Life Giving Bazooka – An Ethereum Contract

tldr? “Life giving bazooka” is an example of an Ethereum contract that represents a pyramid scheme. Check out the scheme @ github. It’s called “life giving bazooka” as a knock on multi-level-marketing schemes.

We’ve been having a lot of fun having some nights where we’re chatting up Crytpocurrency, and recently we got together and had a working session taking a look at Ethereum. We got the client up and running, and moments later gdot had a little “banking contract” running, from an LLL (lisp-like-language) tutorial.

Which is awesome… But, I really wanted to write in the “c-like-language” (CLL) — that’s what I tend to get. So, I found Vitalik’s got a CLL compiler, but it’s pretty alpha. Also, it’s made progress to work with PoC4, which isn’t released yet. All the main releases of the clients (which you can download), are PoC3 based. So, I went ahead and fixed a few things in his compiler, and I’m maintaining my own branch @ https://github.com/dougbtv/compiler/tree/poc3-compat.

But, to make it easier, I’ve been maintaining my own pre-processor (inspired by the C pre-processor) that makes a few things a little easier to work with. You can download my cll-preprocessor at github, and it includes submodules that fix the things that I needed to get Vitalik’s compiler working properly, especially with PoC3.

So… Where’s this pyramid scheme!?! It’s also on github! There’s quite a bit more information there for you to read about how it works, and instructions to run it if you so please.

Quick Links

Aaron’s piHouse Monitor

I’ve been working on a Raspberry Pi project and got it running this weekend.  This post is about the hardware and the installation.  I will post later about how the code works.

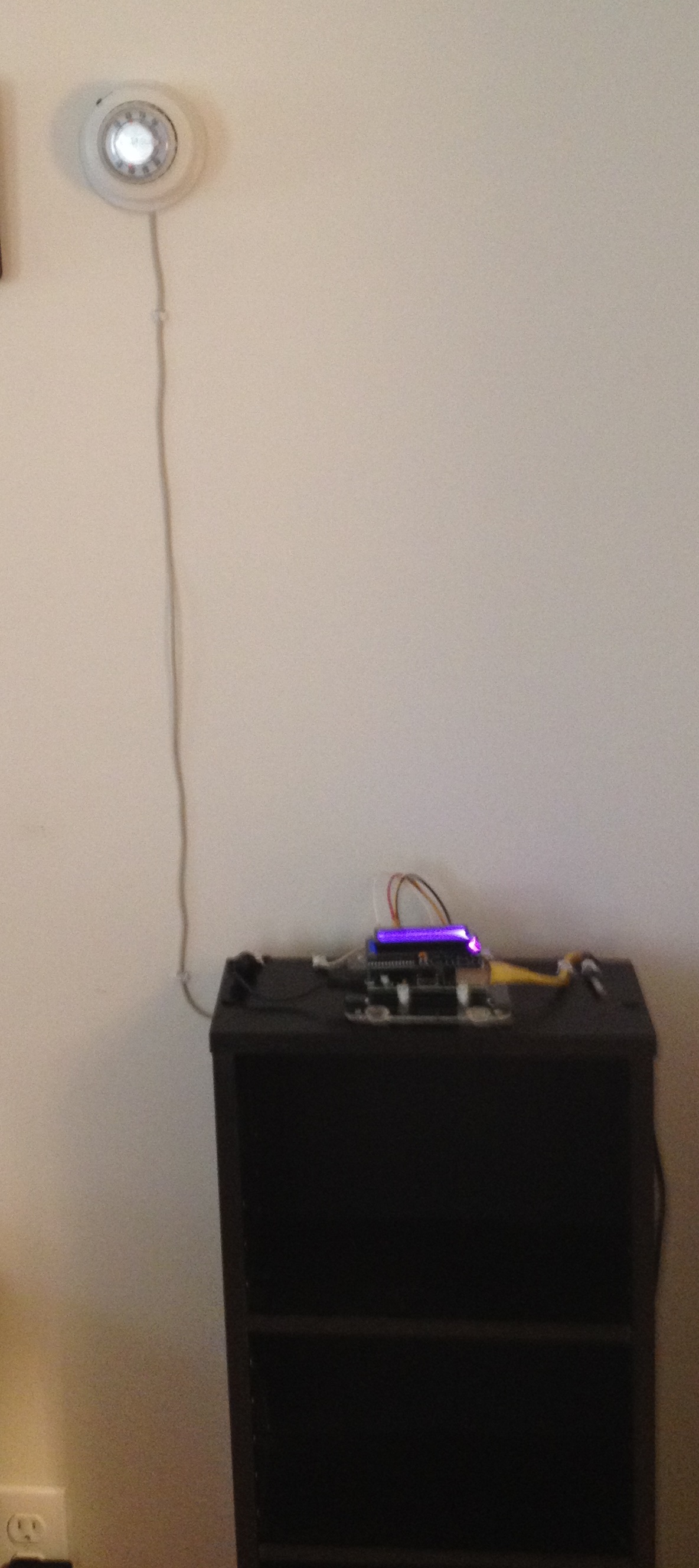

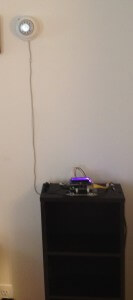

OverviewIntroduction

I have been using microcontrollers for a long time now.  I started in college as part of the program and have never stopped.  Professionally, educationally, hobby, I’ve done projects of all types.

Recently I decided to try something with a Raspberry Pi.  It is the next step up, basically being a little computer.  This was so I could play with Linux again (it’s been years) and do something with a web browser.  These are things I don’t have experience with and have been interested in learning for some time.

The project I settled on was a monitor for the furnace in my apartment.  This monitor will measure temperature(s) and sense if the furnace is running, then log this data.  There will be a web interface that will draw graphs of the data on a daily basis.  There will also be an LCD screen on the pi so that I can see the current data without needing a web browser.

Part 1: Hardware

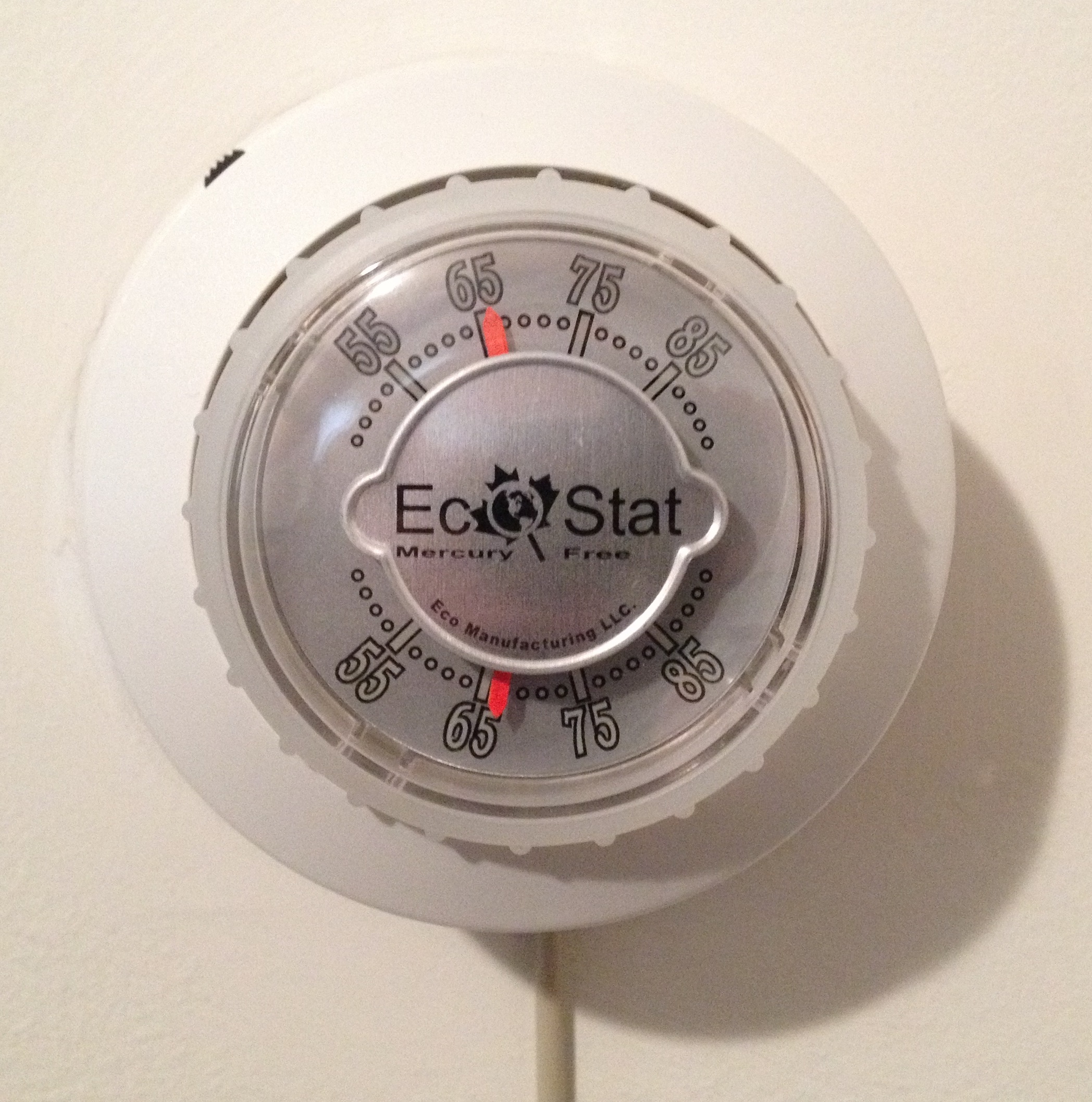

The first step was to make sure I could sense whether the furnace was running.  My furnace is controlled by a thermostat.  A thermostat is a temperature controlled mechanical switch.  Mine looks like this (The wire hanging down was added later):

Photo Mar 02, 17 01 40 edit

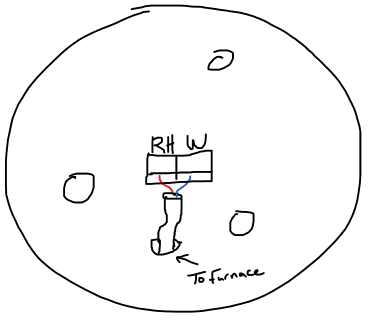

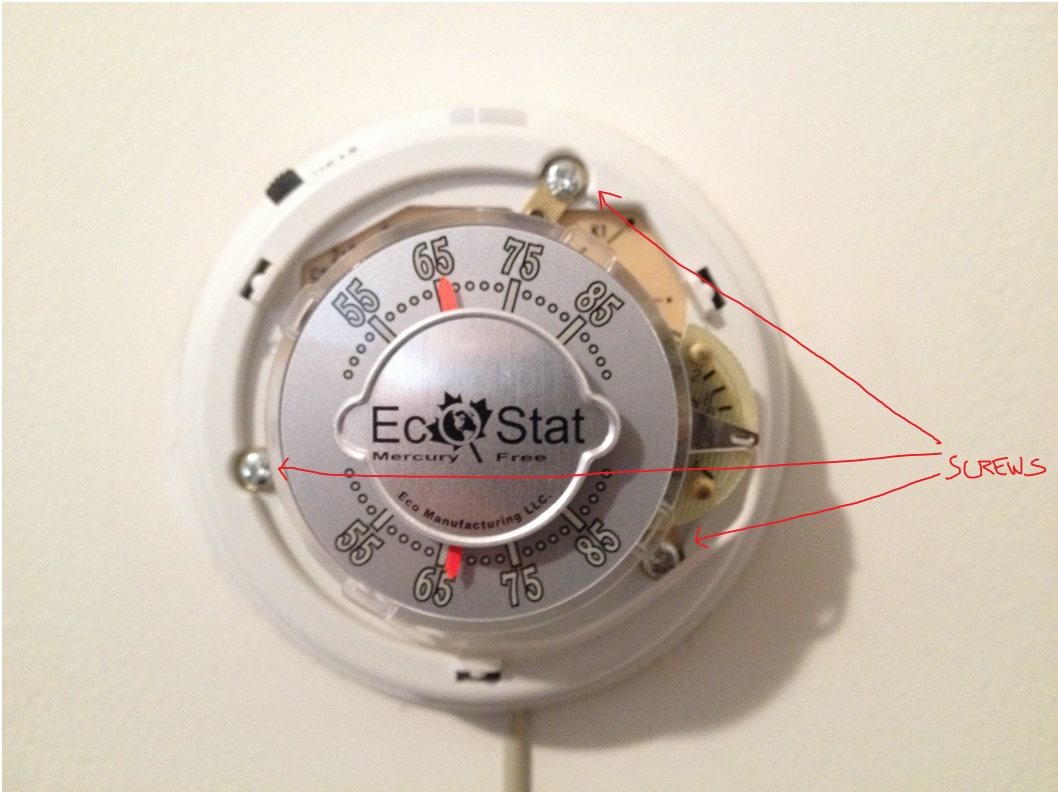

I needed to open this up to see how it worked.  So, I pulled off the ring on the front and exposed 3 screws holding it to the wall.  I took out the screws and pulled the switch off the wall.  I was left with a mounting plate that included a set of screw terminals with a 2 conductor wire attached.  This is the wire running to the furnace in the basement that controls the furnace.

Photo Mar 02, 17 02 01 - Edit thermostat



The screw terminals were labeled as RH and W.  I took out my mult-meter and started doing some measuring.

Open (Furnace off): RH -> W, 25.8 VAC
Closed (Furnace on): RH -> W, 0 VAC @ 95mA

This means that I need to monitor the voltage across terminals RH and W.  If voltage is present, the furnace should be off.  The 95mA is mostly unimportant because the thermostat is going to stay in place.  I just need to make sure the pi doesn’t draw so much current that it turns on the furnace on it’s own.  I drew up the below circuit to accomplish this using a rectifier circuit and an opto-isolator fed into GPIO24.

furnace

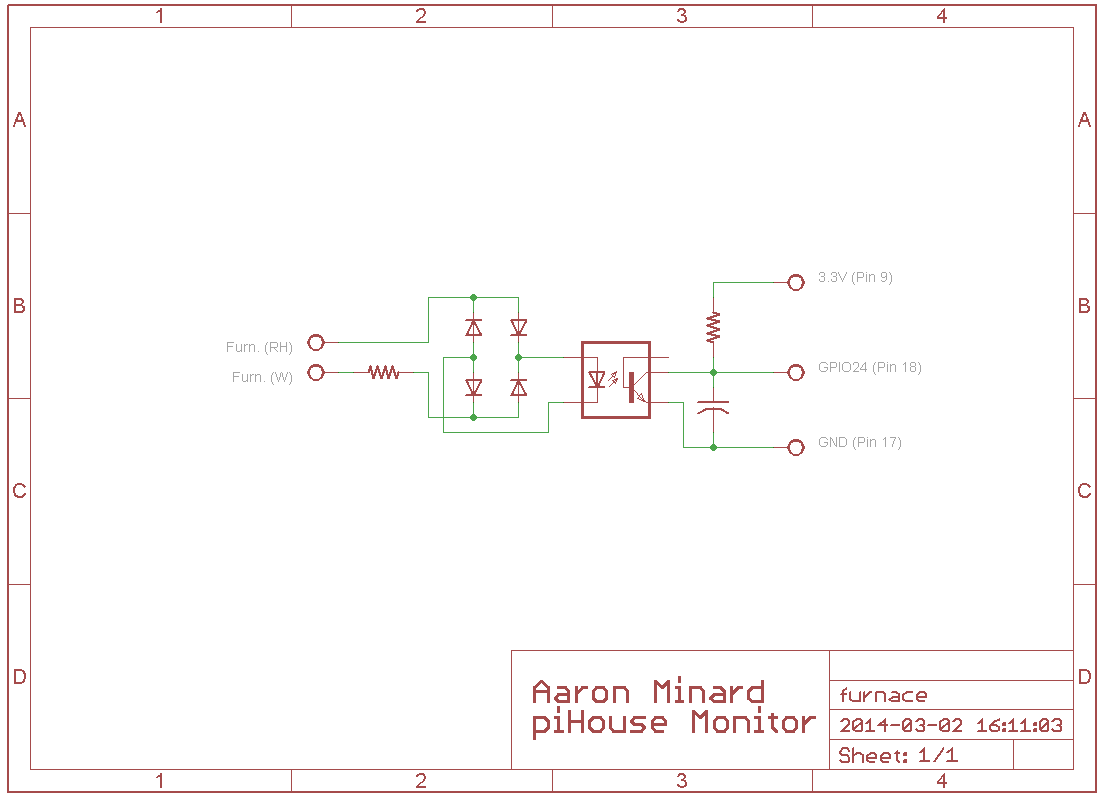

In this circuit, when the thermostat is open, the 10K resistor attached to the terminals limits the current feeding the 4 diodes, which function as a bridge-rectifier.  This rectified AC then drives the LED of the opto-isolator.  When the LED is lit, is turns on the transistor, shorting GPIO24 to GND with a 1uF cap for smoothing because its an AC signal.  When the thermostat is closed, there is no current driving the opto-isolator and GPIO24 is pulled up to to 3.3V by a 100K resistor.

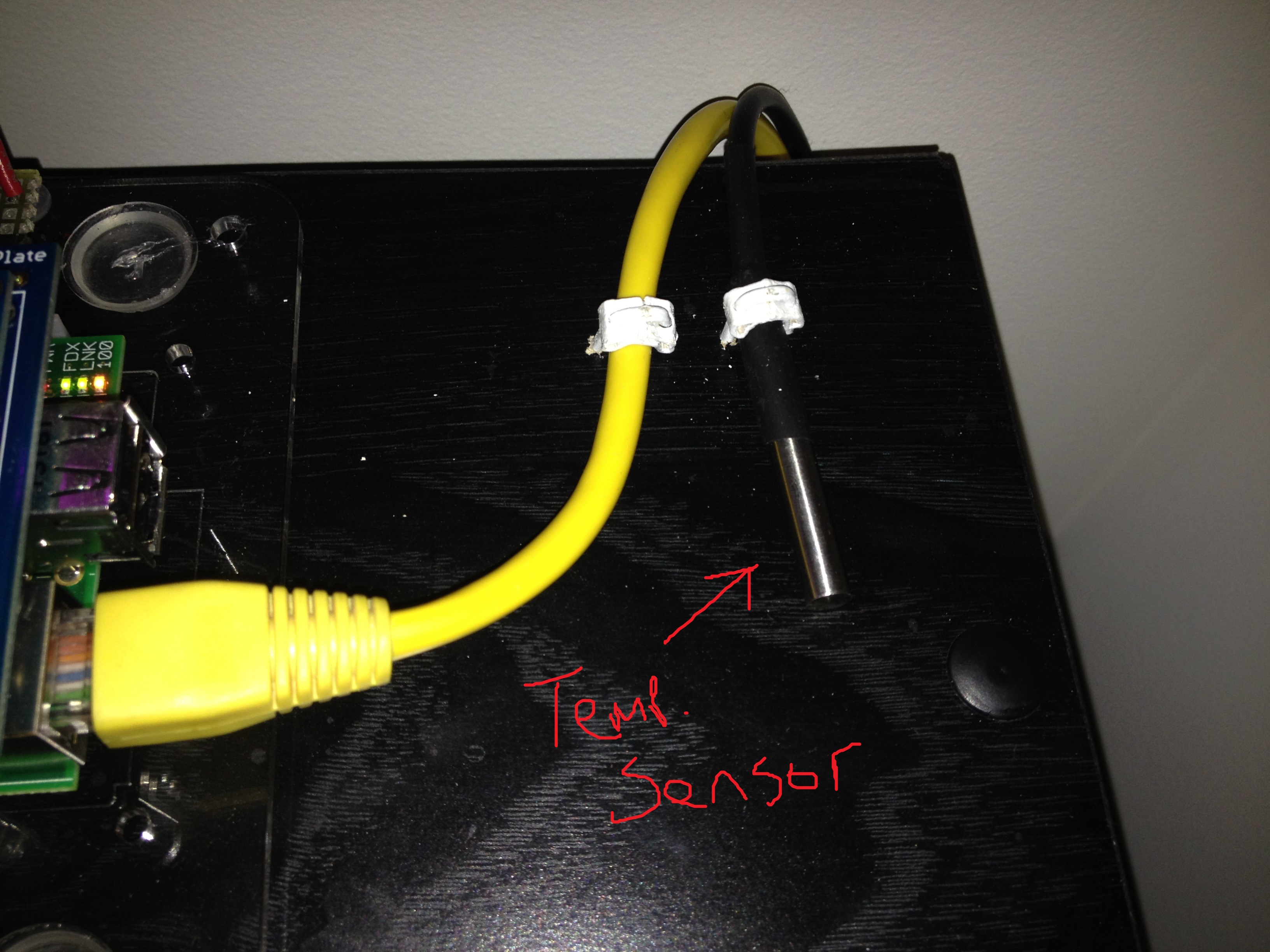

With the furnace monitoring designed, I had to decide on a temperature sensor.  Unfortunately, the raspberry pi doesn’t have any built-in analog inputs.  This was a little disappointing because it’s a standard feature on most microcontrollers I have used, however this is a computer.  After a little research, I settled on a sensor that uses the Dallas 1-wire protocol.  This is a serial bus that is similar to I2C.  I liked it becuase there is pi support and since it is a bus, it is expandable (multiple sensors) without using more inputs.  I found some DS18B20 1-wire Temperature Sensor ICs in a probe package with wire attached on Amazon, a bought a few.

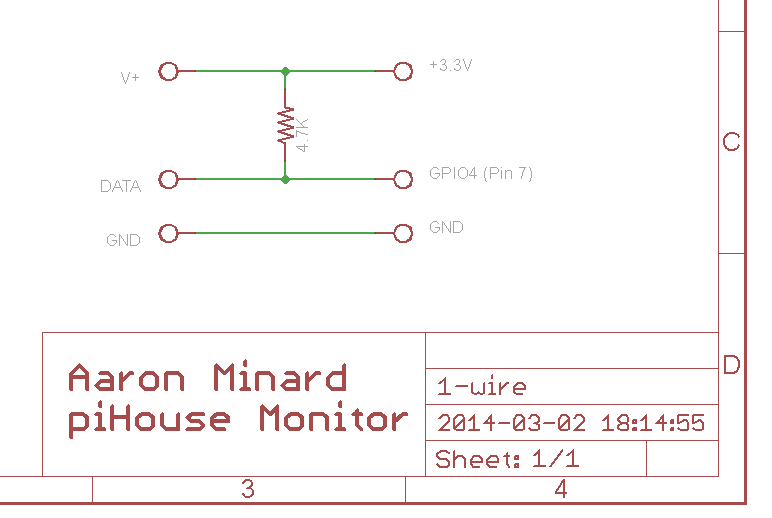

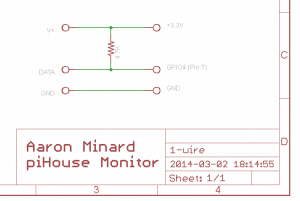

Following the datasheet recommendations, I wired up the temp sensor like this:

1-wire

The last piece for this was an LCD screen.  I did some research and picked a product from Adafruit that has a 16X2 RGB LCD Screen and 5 buttons on a “shield” style board that plugs into the GPIO header on the pi.  I ordered one and when it came in, I soldered it together.

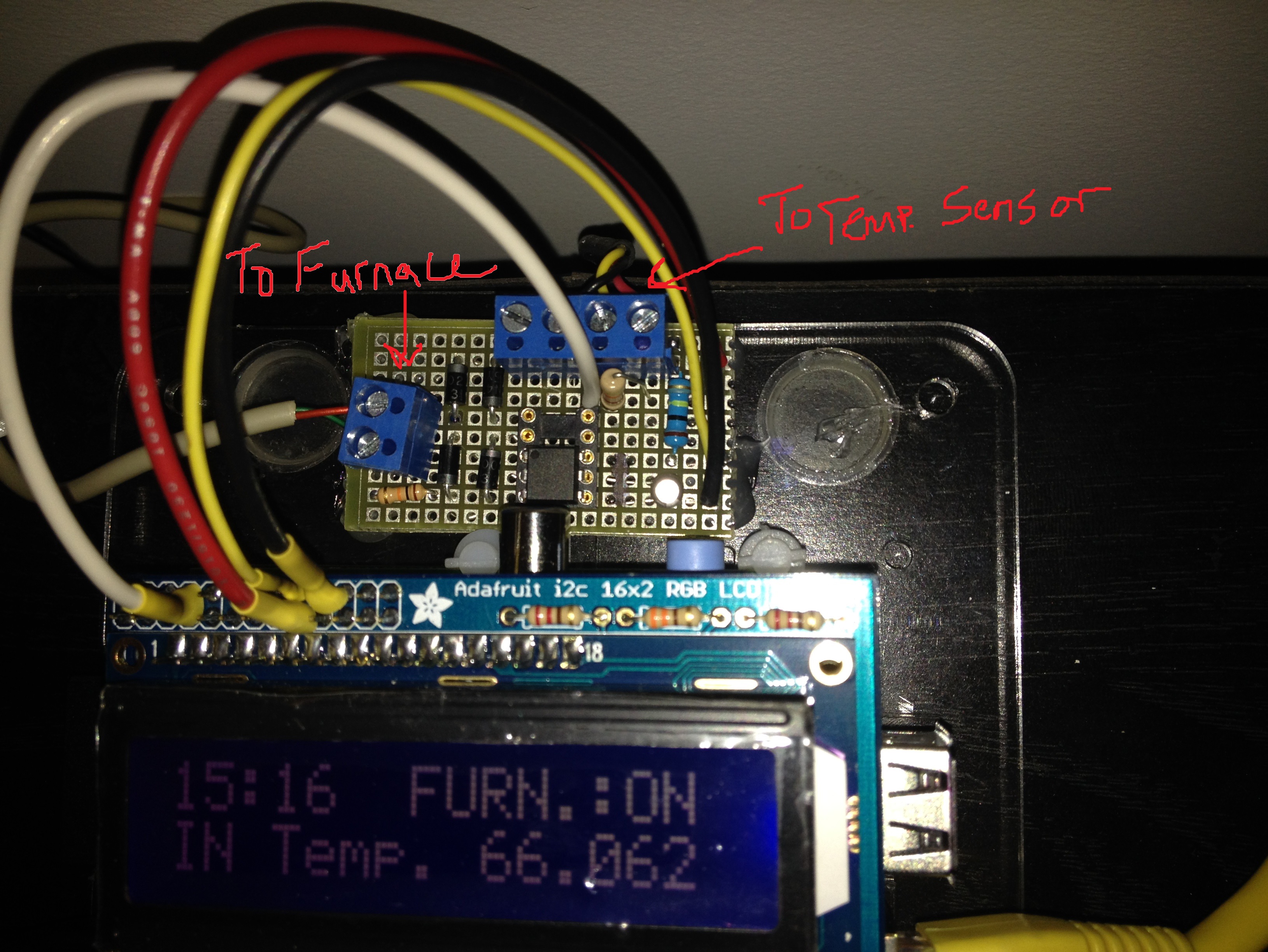

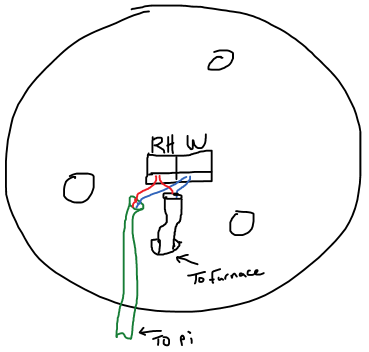

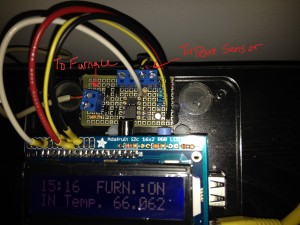

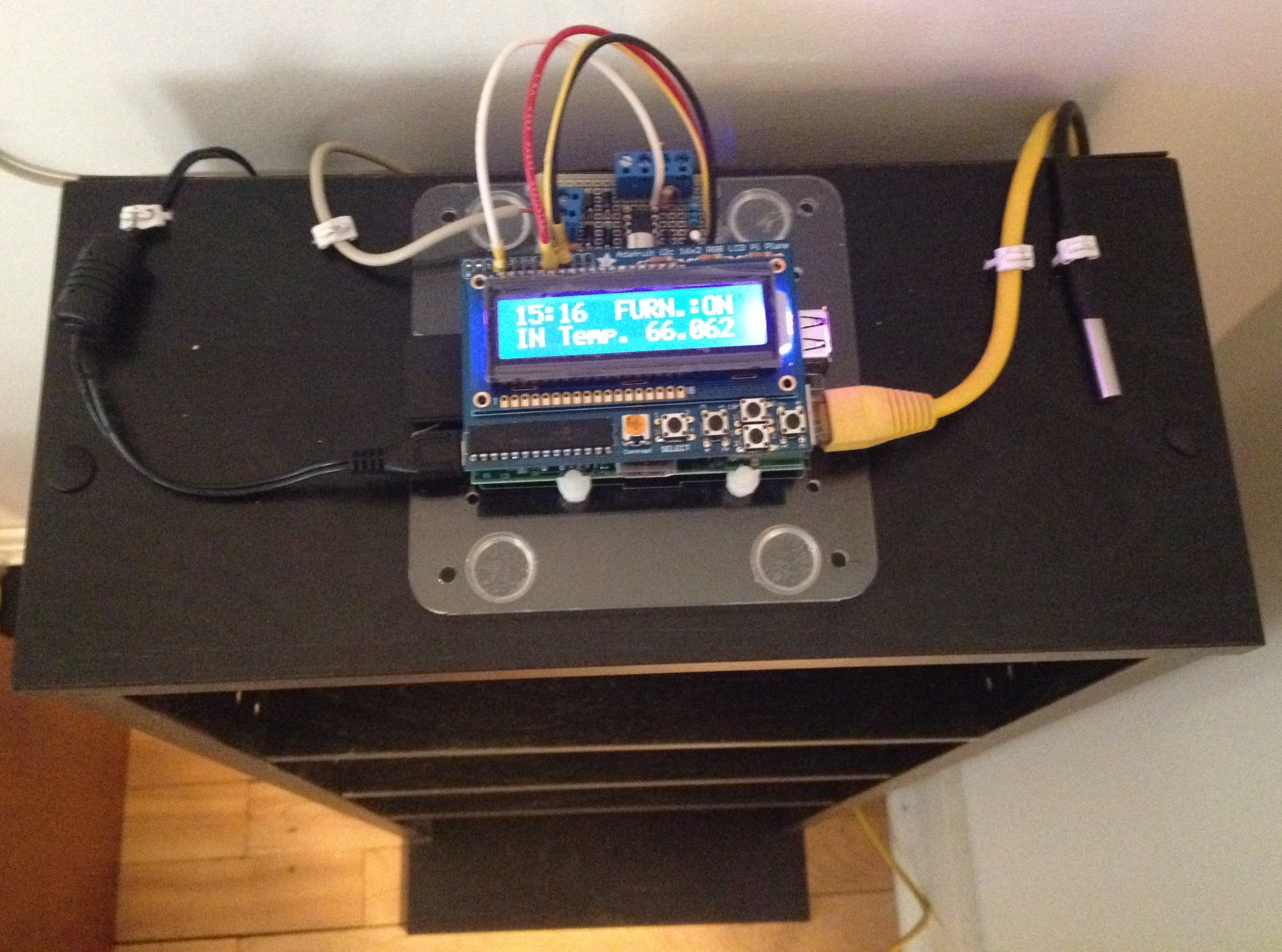

After much programming (That will be a future post), I had all the parts working.  So it was time to put the unit together.  I plugged the LCD screen into the pi, then soldered some wires to the backside of the header-pins on the LCD shield.  The other ends of the wires go to some proto-board where I built the schematics pictured above.  I then added a 2-conductor wire in parallel to the thermostat and connected the other end to the pi’s “furnace” input.  I wired up the Temperature sensor.  I mounted it all to a bookshelf and fired it up.

thermostat_pi proto-board temp-sensor pi_installed_edit

show_graph



CNC Sign

Jesse unveiled the finished product in a previous post, and it does look awesome.  Here are some photos and a simplified and incomplete account of how we got there.  Disclosure, this took place off-campus of Laboratory B as we do not currently have the tools on-site.

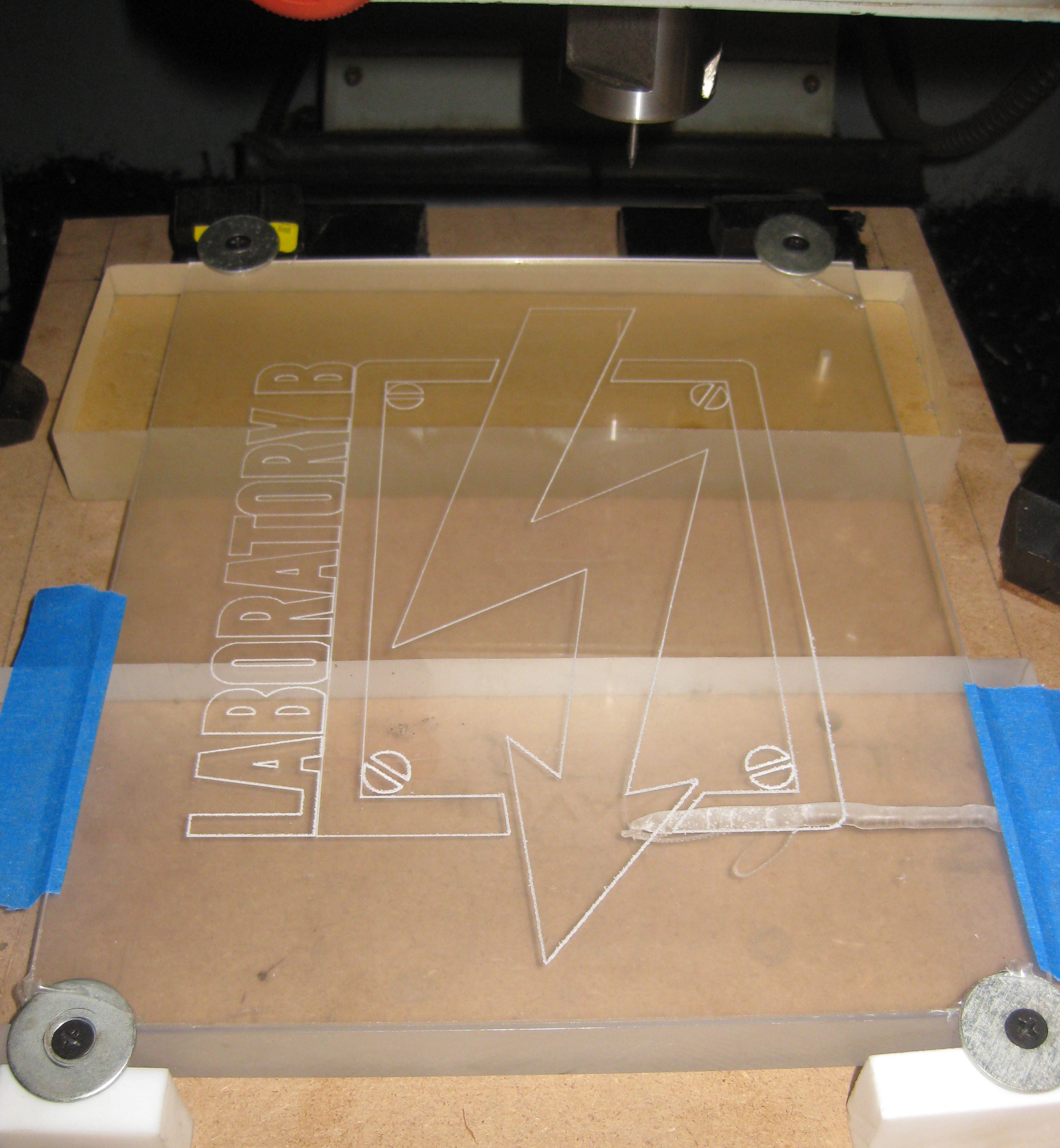

This sign was created by etching a sheet of acrylic and then edge-lightning the result.  The etching is basically a shallow cut that causes light in the material to reflect out.  The cutting was accomplished using a computer numerical controlled (CNC) milling-machine.

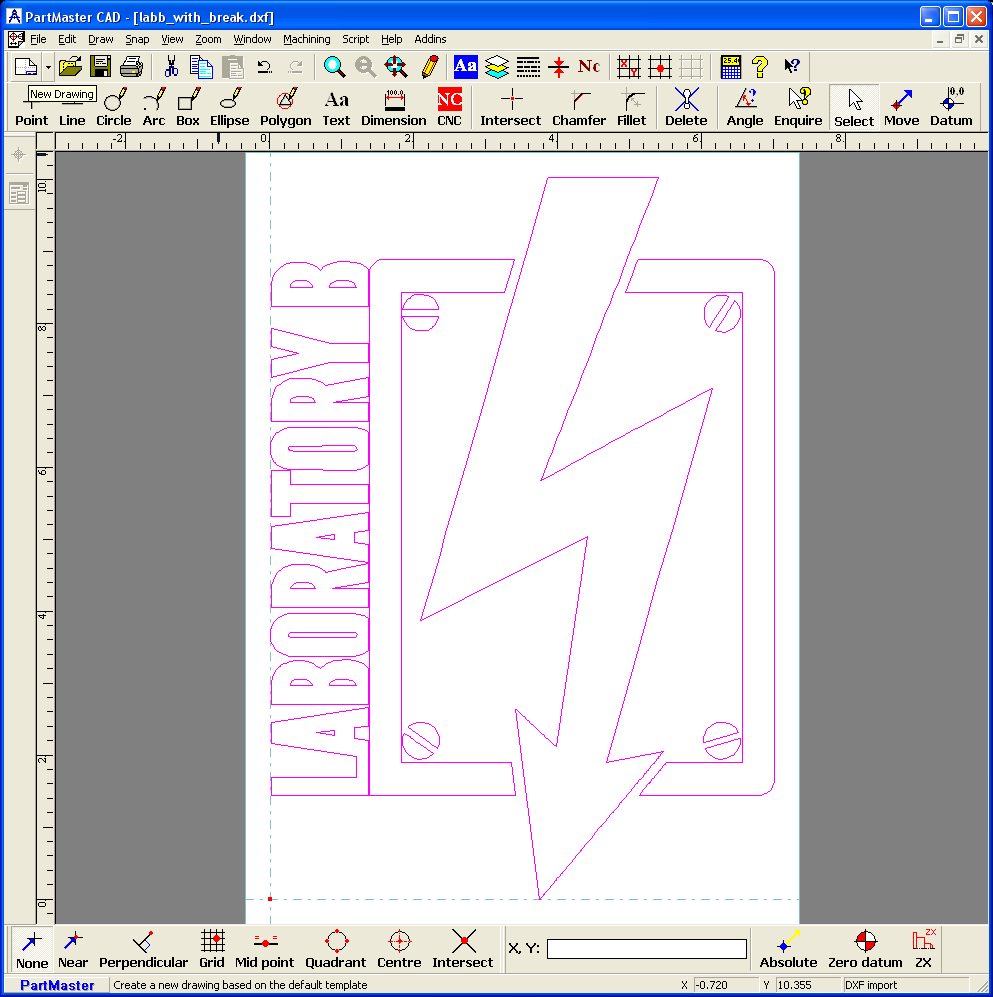

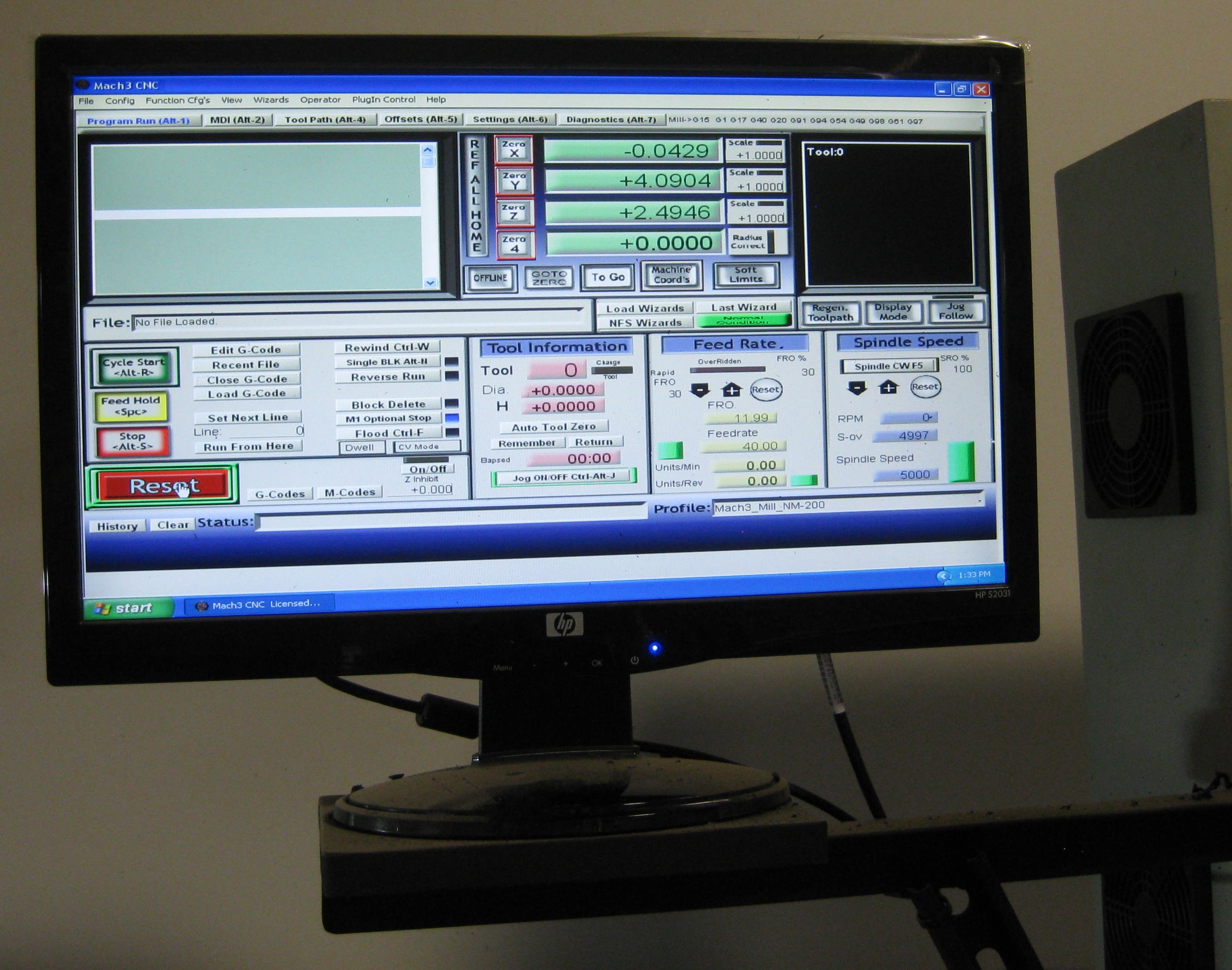

First, we started with a high-res version of the Laboratory B Lightning Bolt (credit to Brenton).  This was imported into a program called PartMaster and converted to a .dxf file.  From this CAD file, we asked the computer (nicely) to generate G-code.  G-code is what we needed to describe to the CNC machine how to move the cutting bit and etch the material.  The CNC machine is controlled by a program called Mach3 CNC.  This software reads text file containing the G-code and interfaces with the milling-machine to move the XY table and the drill head (Z) in order to accomplish the cut.

blogshot1 blogshot2

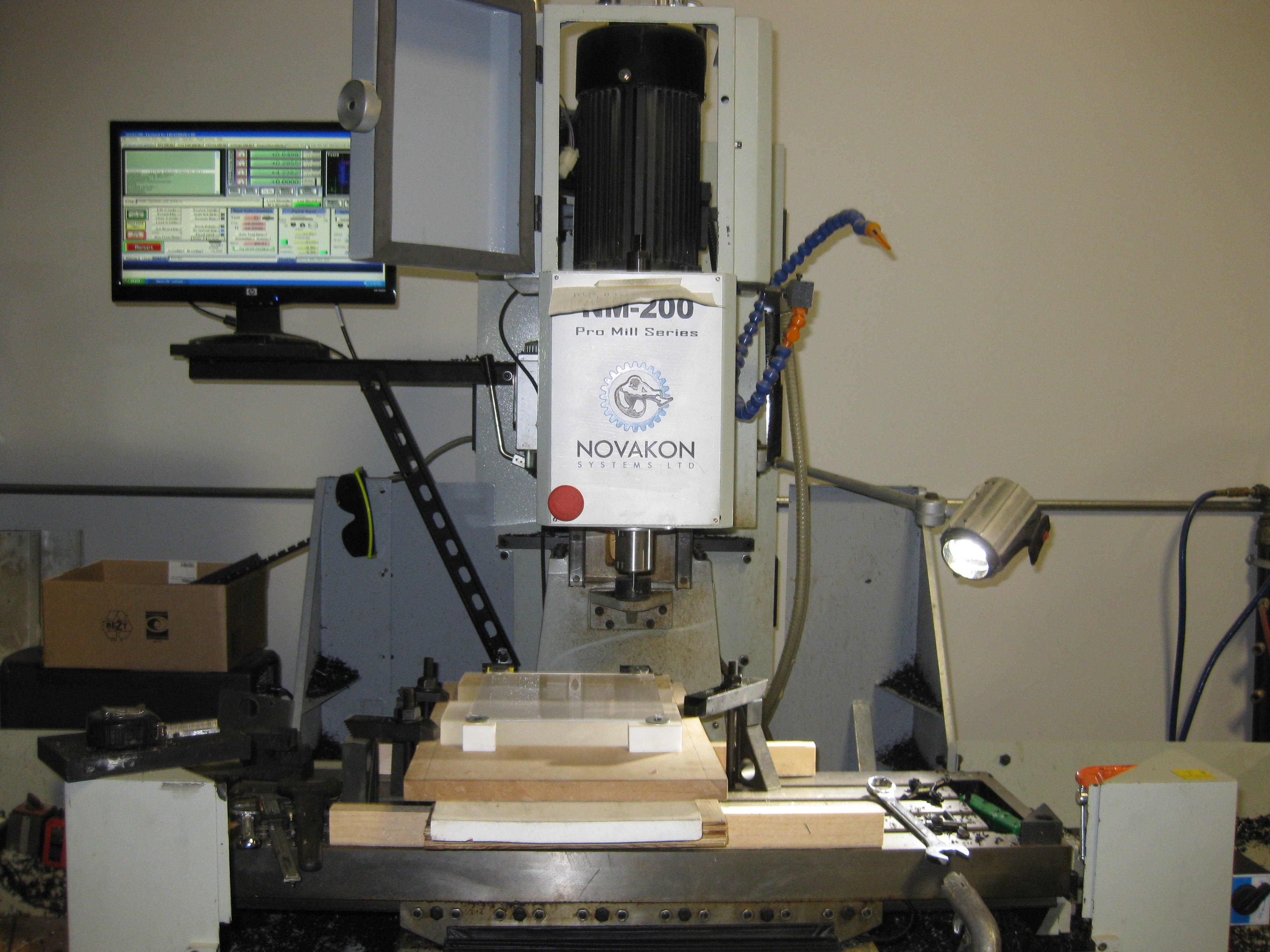

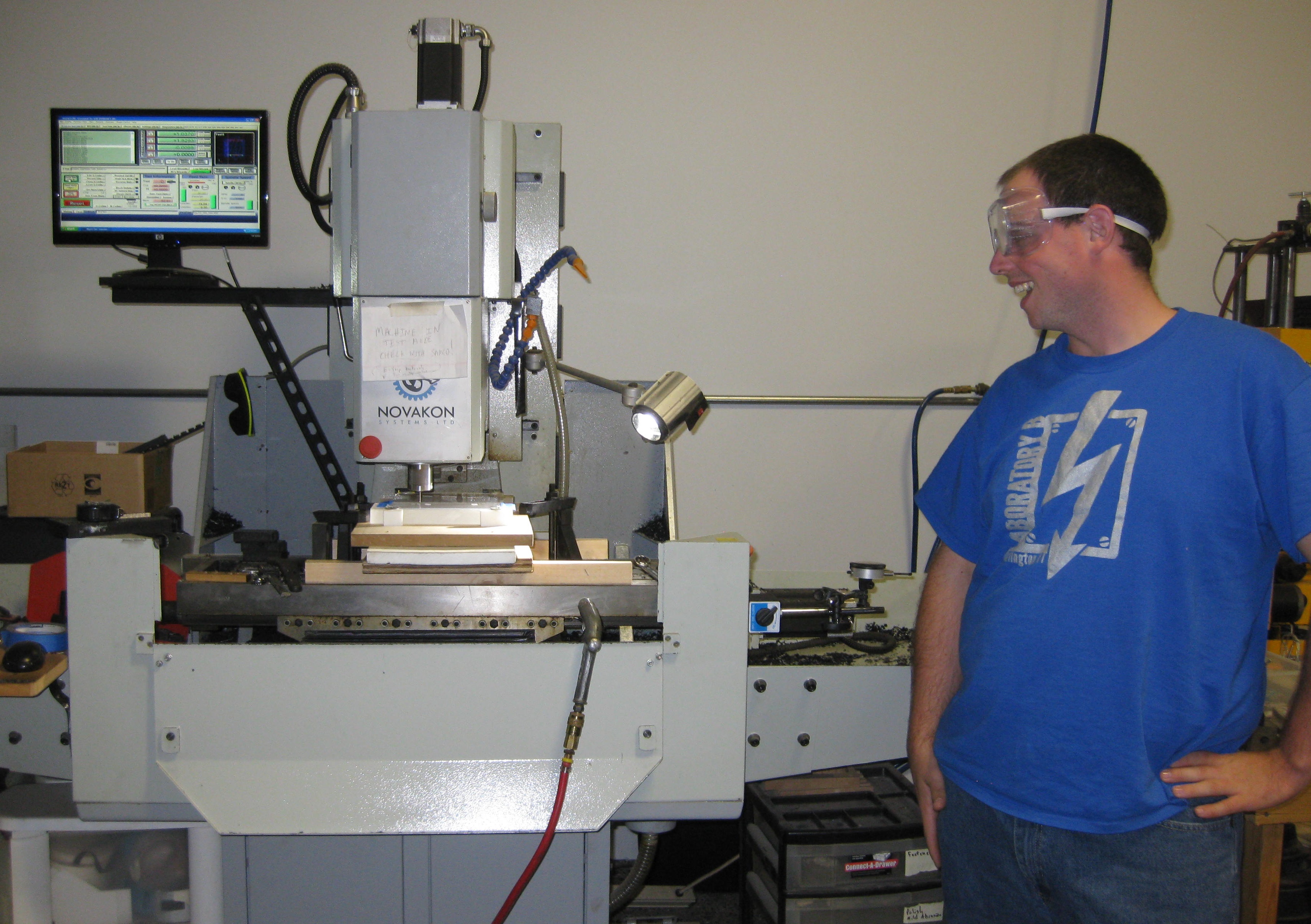

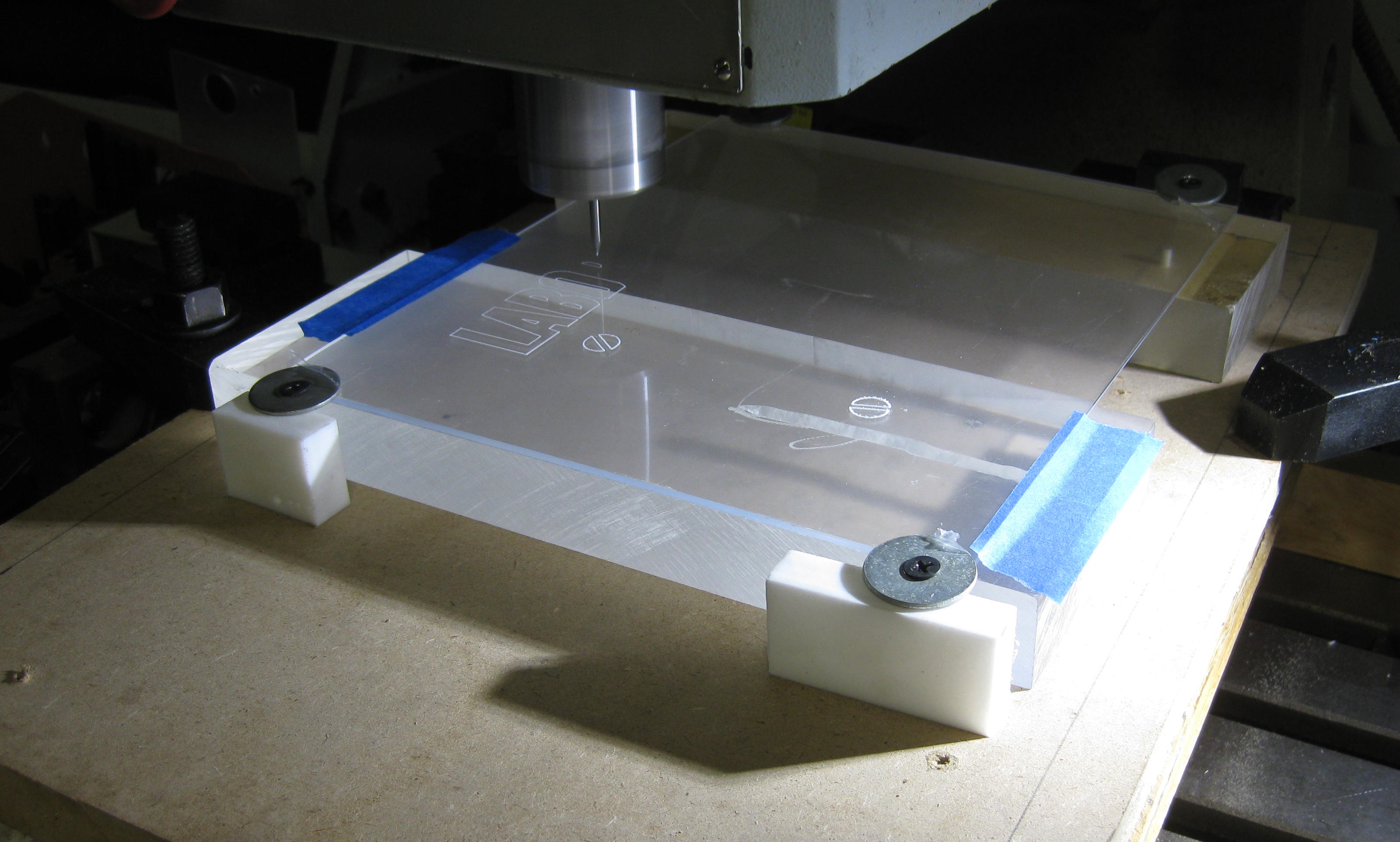

The milling-machine we used for this project was… a little too big.  We wanted to use the whole 10″ x 8″ sheet so we used the big machine, but since it’s not a router, it is normally used with R8 Collets…. the point is, the chuck we used to hold the etching bit was too short.  You can see in this next photos that we couldn’t reach the table and had to add some height to the mounting of the acrylic.  Once this was done, we “zeroed” the machine.  This is a process where we tell the Mach3 software what the location of the material to be cut is, so that it moves everything into the right place at the right time.  Then we hit “START” and watched!  Action shots follow, complete with my watching through my safety goggles.

blogshot3 blogshot4 blogshot5 blogshot6

Procrastination Success

I should have been grading lab reports, but instead I made this key holder with some Legos.  I screwed some picture frame hooks into a few full-height blocks (2×4, 2×3, 1×4) and attached a large base to the wall.  Put some key rings on the Legos, attach the Legos to the base, key holder.  My favorite part is that I can add whatever creation I want to the base plate as long as it can sit vertical, which is always true because it’s Legos.  This is a simple spaceship I put together in a few seconds.

keys

front left
